12" and 18" Auger Bit with Drive for Skid Steer
Sold Out
$1,931.15
$2,131.15
Specifications
| Place of Origin | China |
| Main Color | Black |
| Main Material | Steel |
Dimensions & Weights
| Assembled Length (in.) | 45.30 |
| Assembled Width (in.) | 20.50 |
| Assembled Height (in.) | 80.10 |
| Weight (lbs) | 520.00 |
Product Features
Description
Product Overview

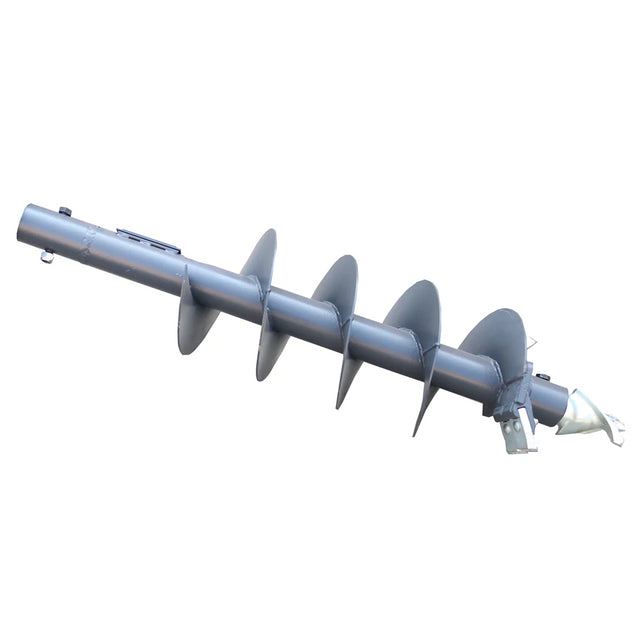

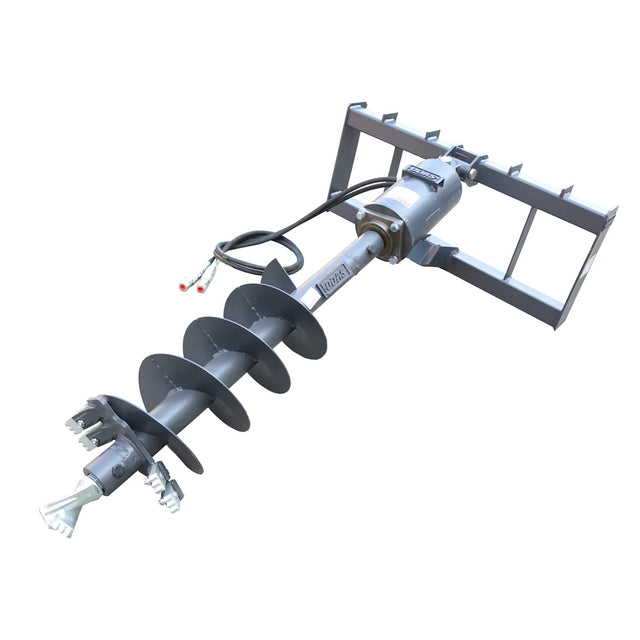

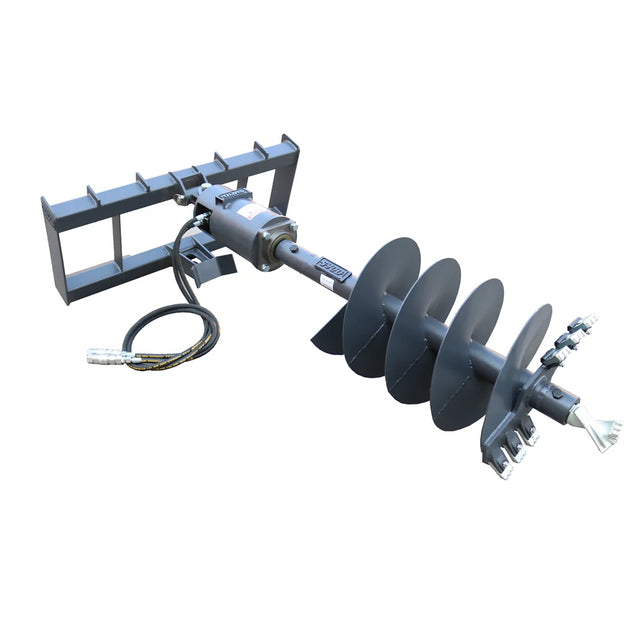

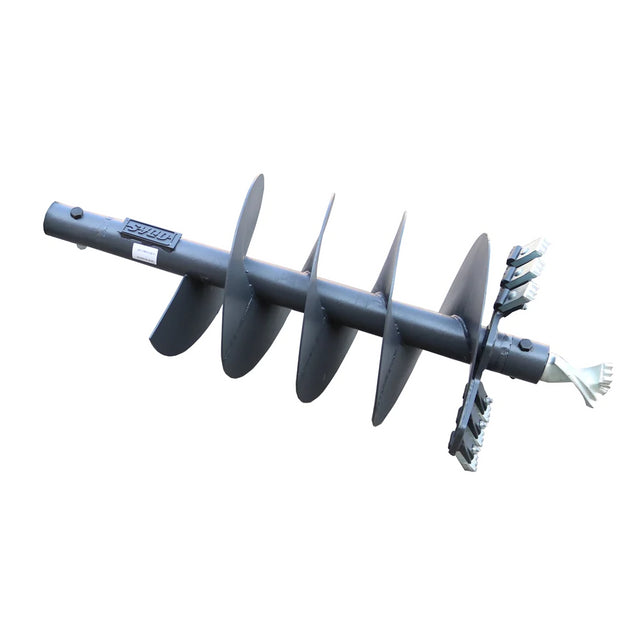

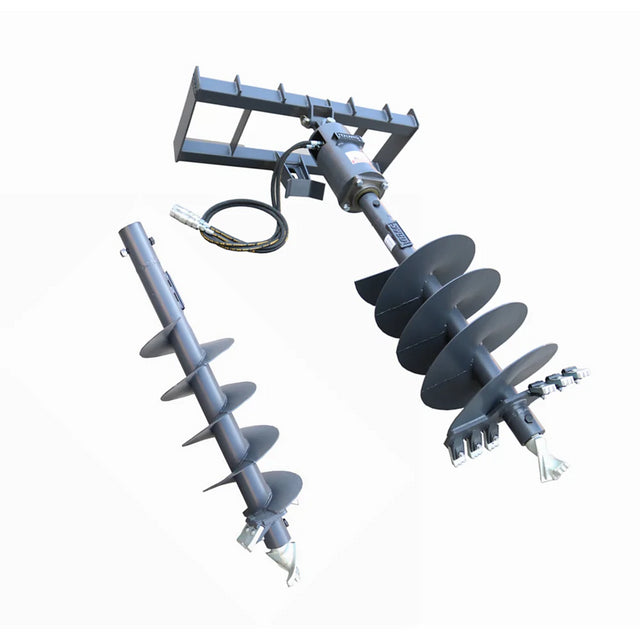

12"+18" diameter compact drive & Auger for skid steer loader. Takes the effort out of digging the right sized hole for the task at hand. A hydraulic motor drives the auger through a sealed planetary gear reduction. The heavy duty all gear design of our planetary drives gives these units a long life with minimal maintenance and service costs.
Features:
- Fits Inner Width 44.9“ Universal Skid Steer Quick Attach
- Direct Drive Through Planetary Gear
- 6-15 GPM Flow Range
- 2" Hex
- Mounting Plate, Hoses and Couplings Included
Specifications:
- Auger Diameter: 12"+18''
- Hydraulic Flow Required: 6-15gpm
- Rated Output Torque: 950N.m
- Max Output Torque: 2500N.m
- Max Input Speed: 1000rpm
- Unit Weight: 520lb
- Blade Thickness: 0.15in
- Shaft Diameter: 3.3in
- Shaft Length: 45in
- Package Size: 53.4 x 23.9 x 39.4in
- Package Weight: 582lb
Products Size：
Inner Width 44.9" Universal Skid Steer Quick Attach：
ATTENTION: Please check the Mount Plate can fit your loader before purchase!
