• Bonus One New Generation of Wireless Remote Control + One Hand Controller
• Power In & Power Out Motor for Positive Load Control
• Kit comes complete with all wiring required for installation
• 26 Meters Synthetic Rope
• Free Spooling Clutch for Fast Wire Rope Payout

Description

• Rated Line Pull: 12000 lbs(5443kg)
• Motor: 6.0hp/4.8kw Series Wound
• Gear Ratio: 265:1
• Recommended Battery: 650CCA Minimum
• Remote Control: 1 PC Wireless Control / 1 PC Wire Control
• Control: Remote Switch,12ft(3.7m)Lead
• Cable Length: 9.5mm×26m
• Gear Train: 3 Stage planetary
• Battery Leader: 2gauge,72"(1.83m)
• Fairlead: Aluminium Hawse Fairlead
• Weight: 59.5lbs (27.0Kgs)
• Material: Stainless Steel
• Brake: Automatic Load-Holding Brake
• Drum Size: 2.52" × 8.82" (64mm × 224mm)
• Mounting Bolt Pattern: 10.00±0.015" × 4.50±0.010" (254mm × 114.3mm)
• Cable Material:Synthetic Rope

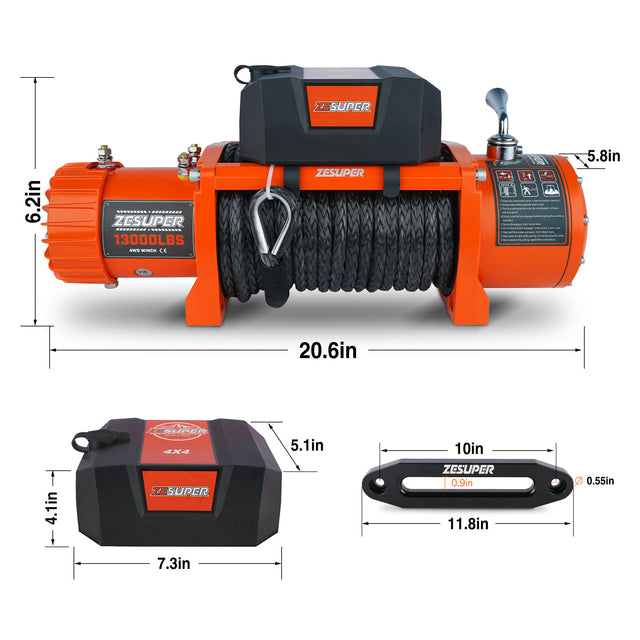

• Dimensions: 530mm×160mm×218mm

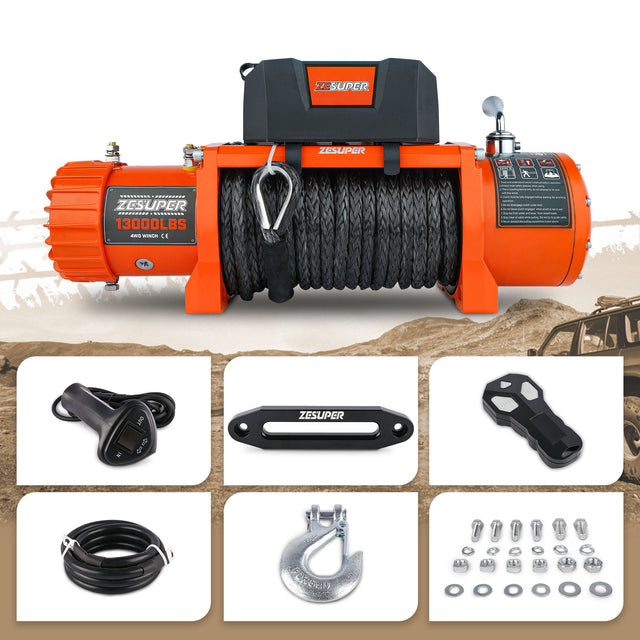

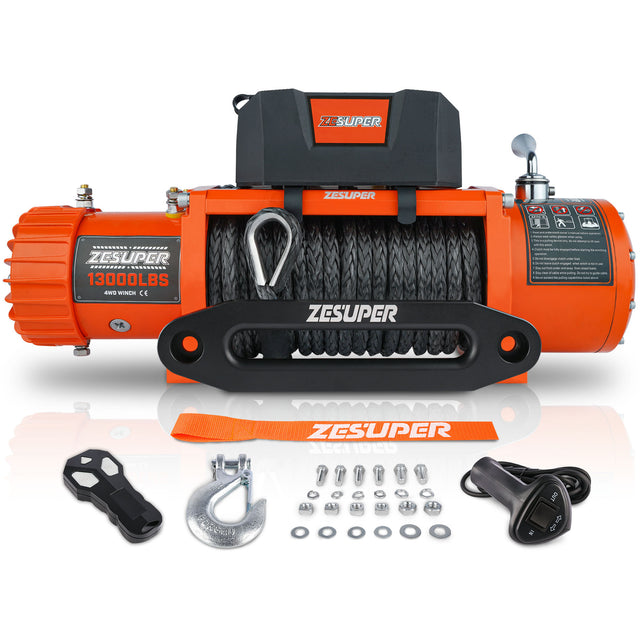

IN THE BOX

• 13000LBS DC 12V Winch × 1
• Hammer Forged Hook × 1
• Set of Bolts × 1
• Set of Cables × 1
• Wireless Remote Controller × 1
• Hand Remote Controller × 1
• Aluminium Hawse Fairlead × 1
• User Manual × 1

Notice

• 1.please read the instructions carefully and wire according to the instructions. Winches are electrical products that can cause short circuits and heat or smoke if wiring is wrong.
• 2.All winches are provided with a red cable marking to identify that 5 cable wraps remain on the winch drum when this mark appears at the rollers.No recovery should be attempted byong
